SLIMWALL™ FLAT PANEL & RAINSCREEN SYSTEMS

For use as a rainscreen or as a complete NON-COMBUSTIBLE insulated assembly

  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen
  • APL Rainscreen

Our Slimwall™ flat panel system is available in aluminium, steel and Cor-ten and can be used either as a rainscreen or as a complete NON-COMBUSTIBLE insulated assembly.

It allows for fully systemised detailing - with a variety of recessed and flush joint options being available - to allow complete integration of flush or recessed windows, doors and louvres. Slimwall™ is probably the most economic quality truly flat system and/or rainscreen currently available.

Slimwall™ flat panel and rainscreen assembly fašade systems have been successfully tested in line with CWCT Standards, covering Air Permeability, Water Penetration, Wind Resistance (Serviceability & Safety) and Impact Resistance

Click here to download our CWCT Test Report

Key Benefits

  • Bespoke design and manufacture to suit your project
  • Available in Aluminium, Steel, A1 or A2 ACM and Cor-ten
  • Fire tested as part of an complete NON-COMBUSTIBLE insulated assembly when combined with APL Tritherm Spacer System
  • A1 fire-rated materials available
  • Available in PPC, Armacoil™ (2-layer PVDF coating system), ArmacoilPLUS™ (3-layer PVDF coating system) Anodised, PUF, PRISMA and LG finishes
  • Secret-fix options available depending on module size
  • Up to 40 year warranty available on both the coating and the substrate, including for marine environments
  • Only the most economic material thickness to achieve true flatness of the panel is selected

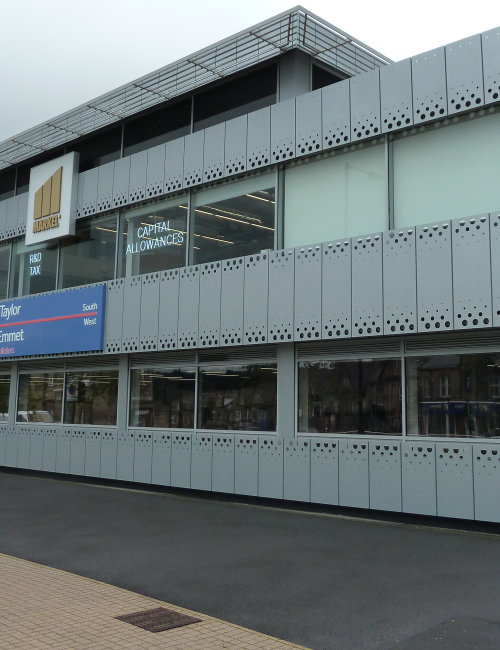

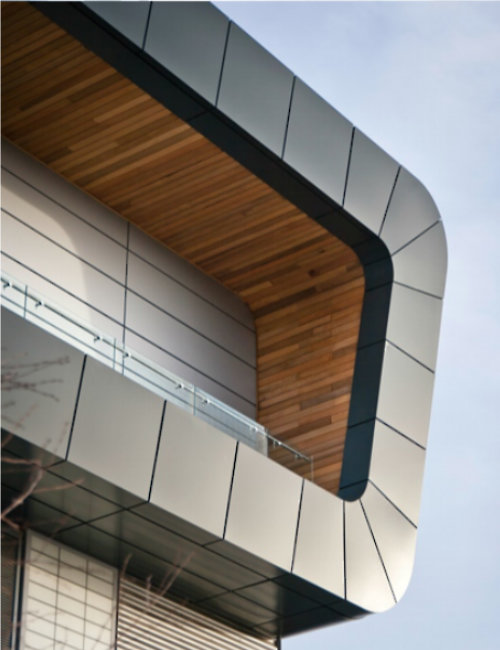

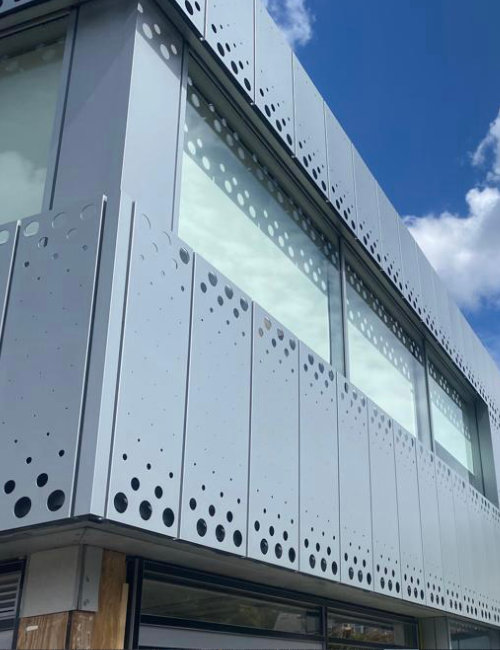

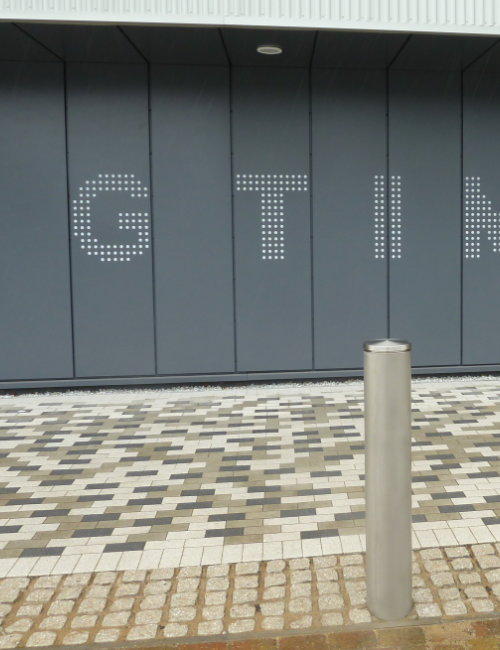

  • Available curved, perforated and dished – bespoke designs available
  • Joints sizes from 3mm to 20mm
  • Available in face widths up to 1100mm and lengths up to 6m
  • Can be laid both horizontally and vertically
  • System constructions available onto both cladding rails, SFS and blockwork.

Download more information

Click here to download our Slimwall™ Rainscreen brochure.

Click here to download our Automotive brochure.

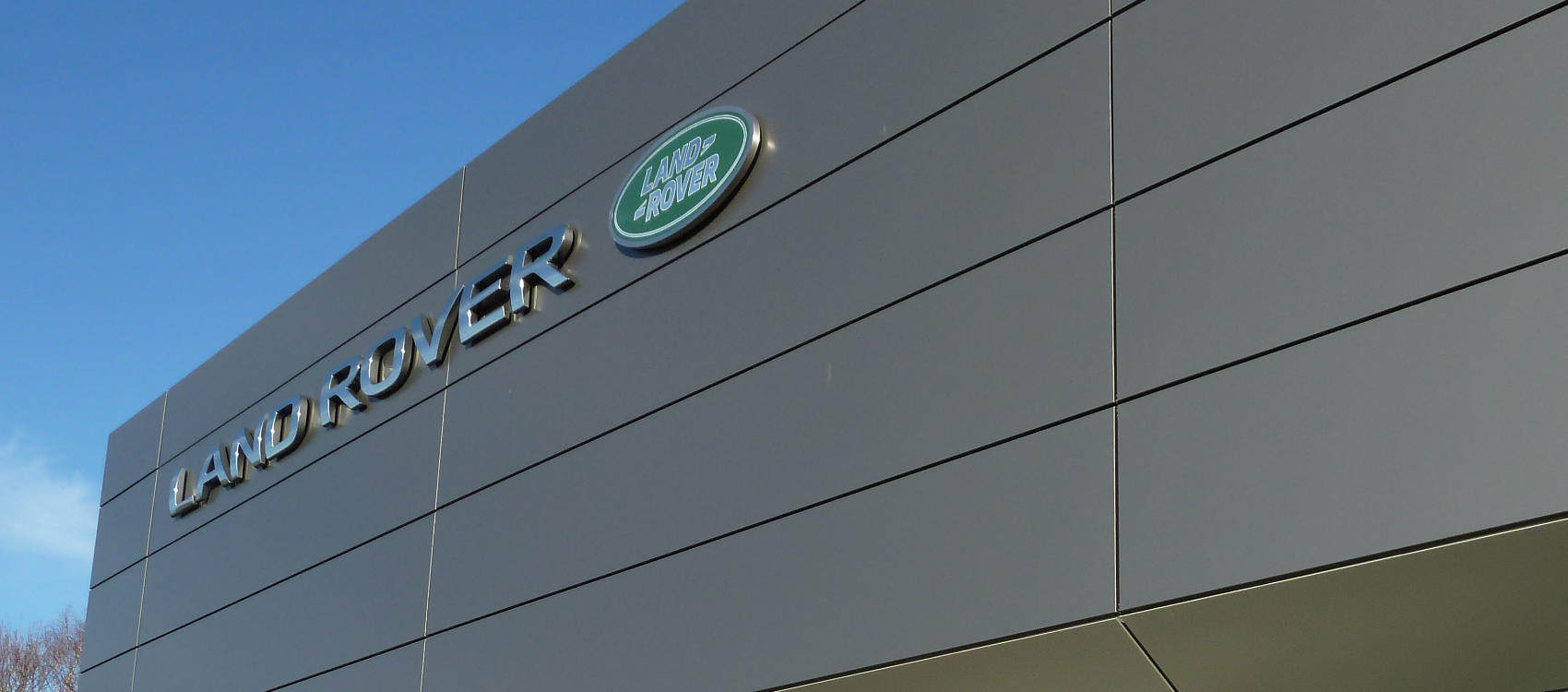

Click here to download our JLR case study.

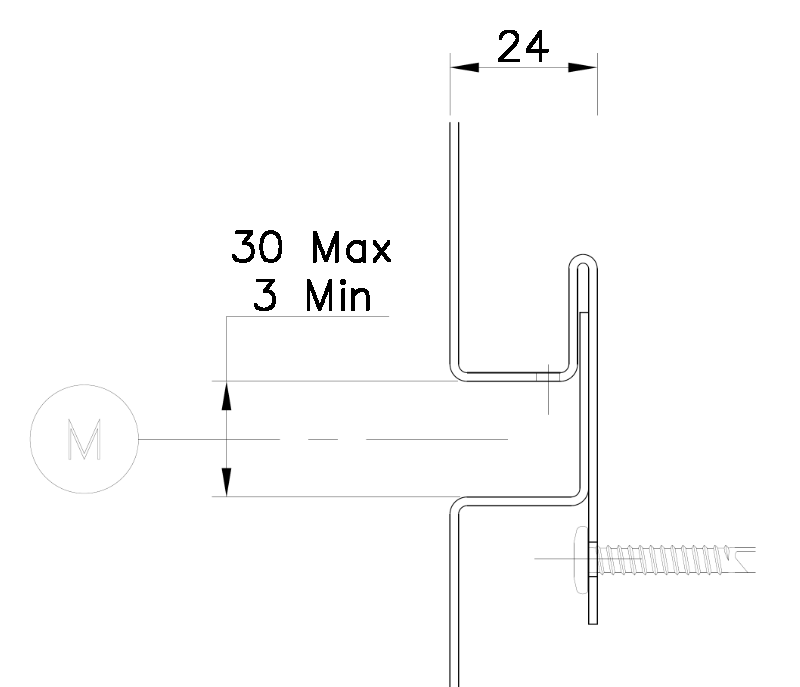

Slimwall SFP24

Secret-Fix

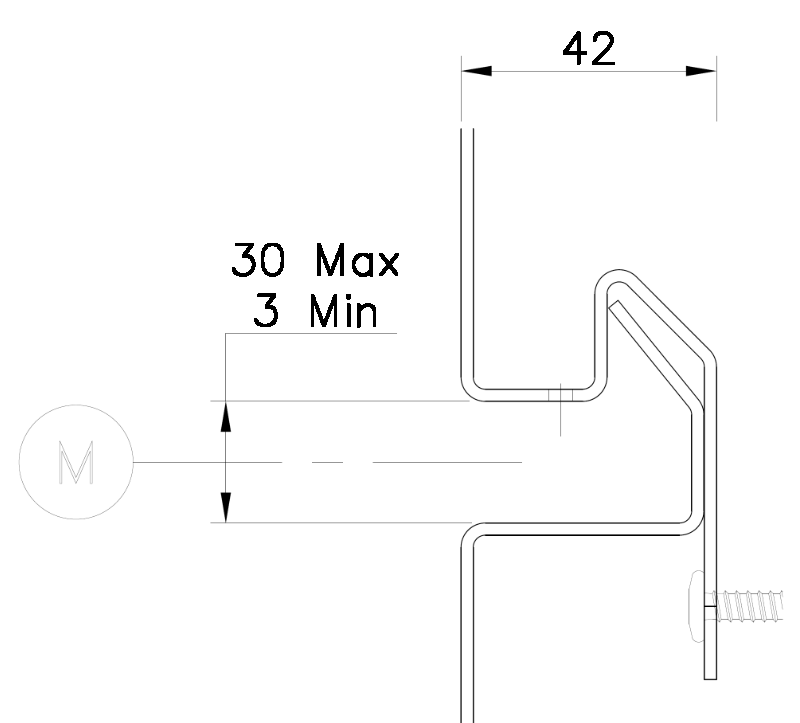

Slimwall SFP42

Secret-Fix

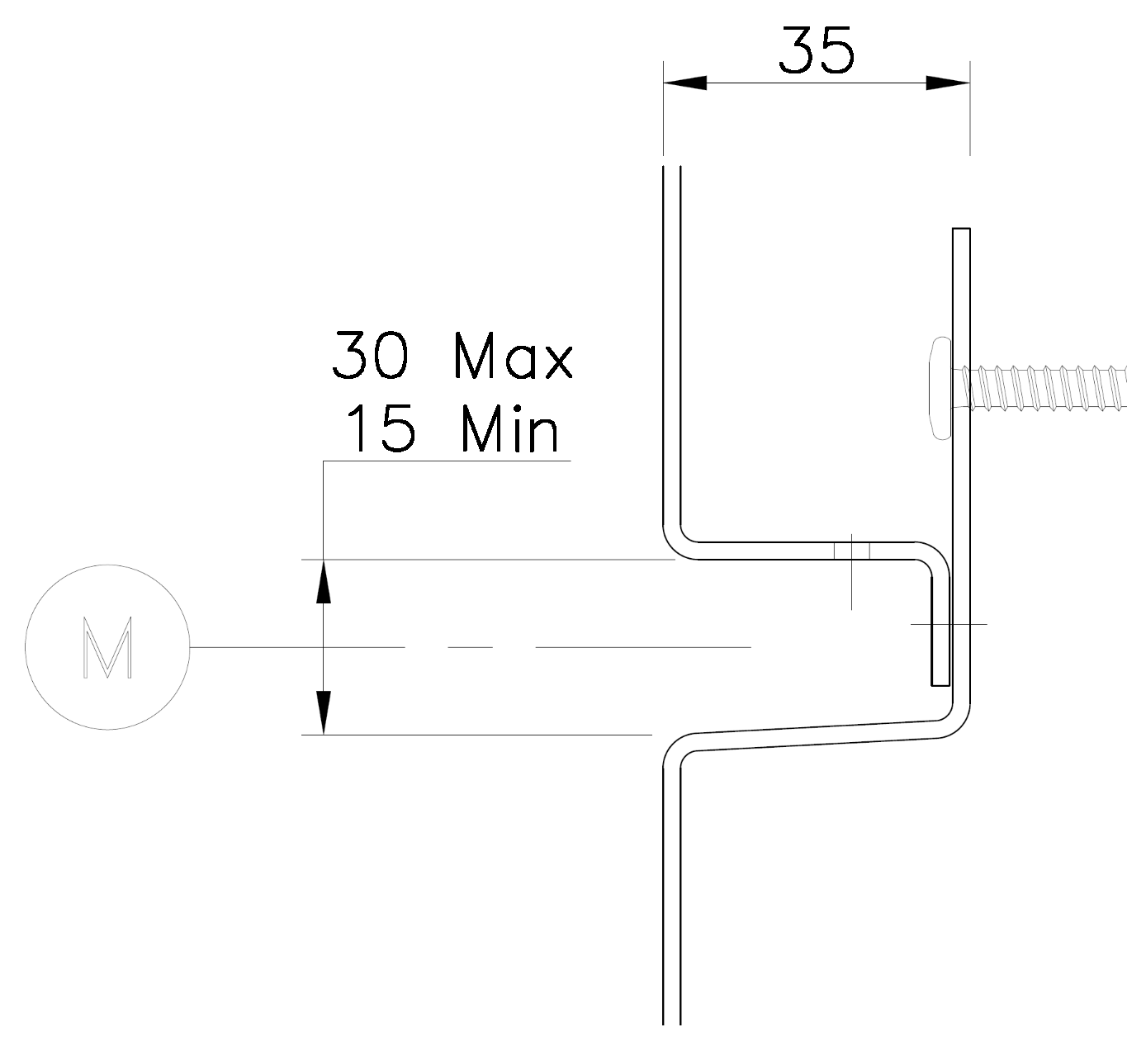

Slimwall CPS/SSF

Discreet-Fix
