Half Round/Sinusoidal

Architectural fašade and roofing solutions

  • APL Sinusoidal
  • APL Sinusoidal
  • APL Sinusoidal
  • APL Sinusoidal
  • APL Sinusoidal
  • APL Sinusoidal

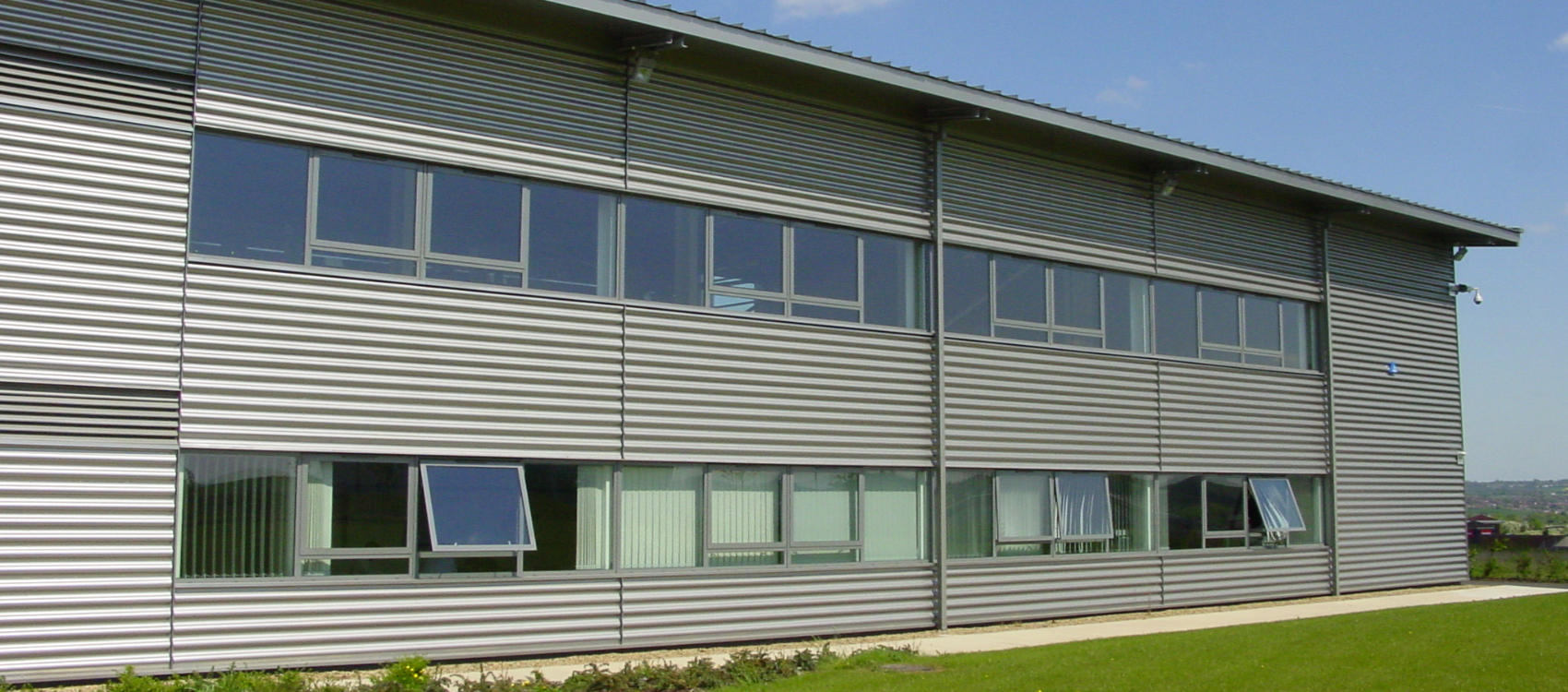

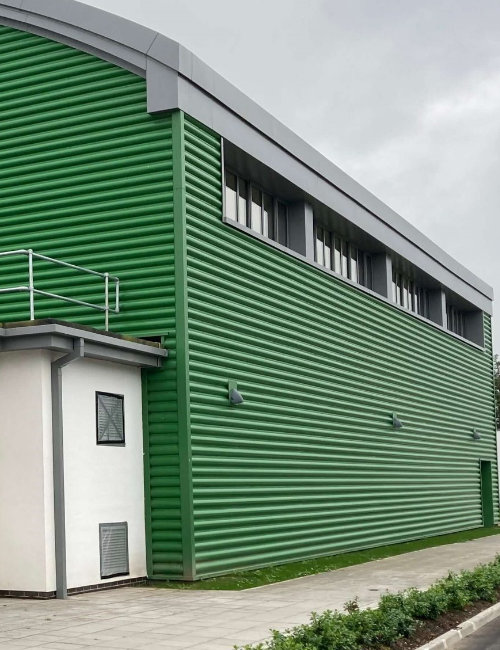

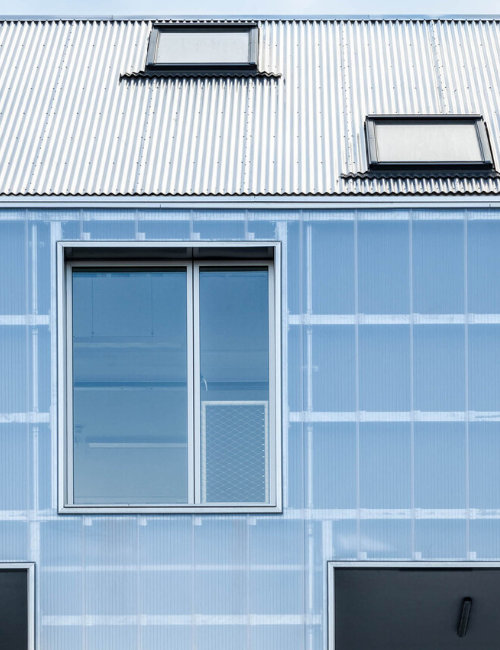

APL Half Round/Sinusoidal profiles are from our family of 'niche profiles'. Their sinusoidal shapes are used with dramatic effect across the whole range of building designs, providing very stylish and low cost fašade and roofing solutions.

They can be used to reproduce original profiled roofing shapes as well as providing modern and bolder alternatives. Available in both Aluminium, Cor-ten and Steel they can be supplied in a wide choice of finishes and colours.

The 18HR & 45HR profiles have been successfully tested to CWCT-standards as both a ventilated rainscreen cavity and a fully-filled cavity.

Click to download our CWCT Test Profiles.

Key Benefits

  • All systems as a non-combustible construction
  • Suitable for both wall and roof applications
  • Available in aluminium, steel and Cor-ten

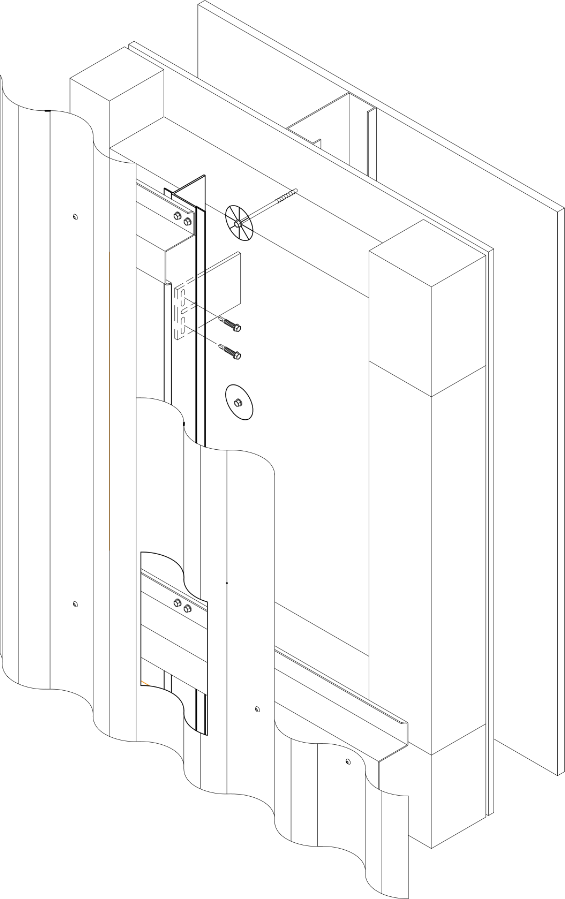

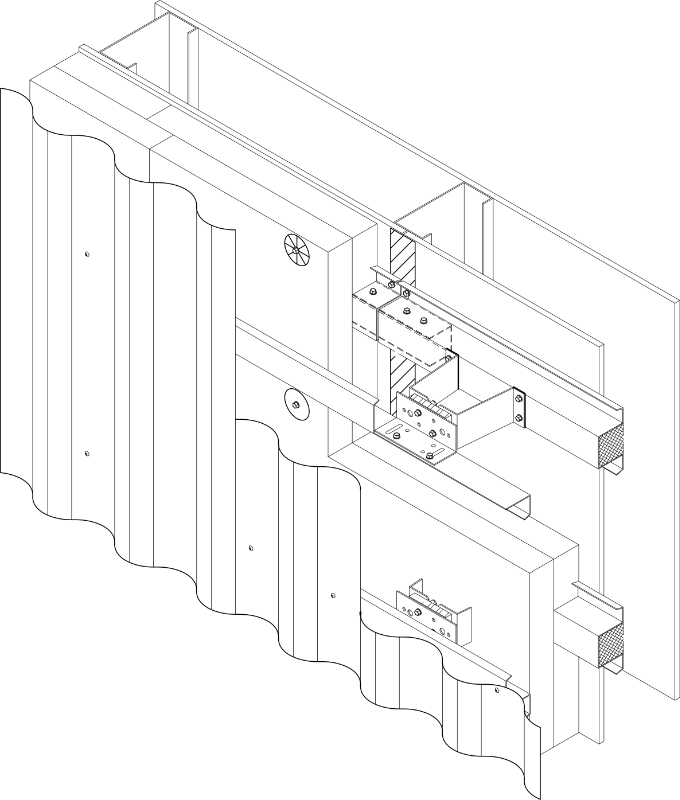

  • Available as a fire-resistance rated insulated system assembly when combined with APL Tritherm™ Spacer System, with simple system upgrades for improved fire resistance performance
  • A1 fire-rated materials available
  • Available in PPC, Armacoil™HDP, Anodised, PUF, PRISMA and LG finishes
  • Available with coating warranties up to 40 years including in marine environments
  • Available perforated and in bespoke widths
  • Can be laid both horizontally and vertically
  • System constructions available on to APL StrongBak™, cladding rails, SFS and blockwork
  • 25 years’ experience of these specialised profiles
  • The biggest range of sinusoidal profiles produced in the UK
  • Extremely attractive cladding options at economical prices
  • Can be installed as part of the APL EcoClad™ Energi Systems
  • Available as an acoustic construction with enhanced acoustic performance.

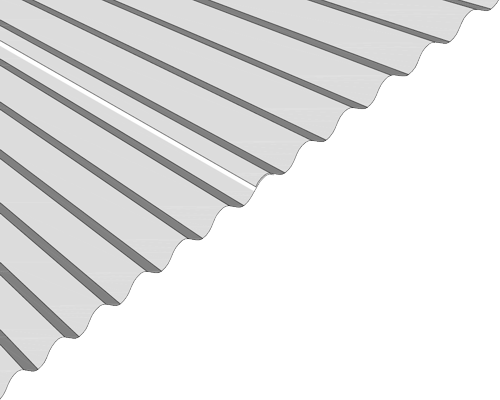

AP18HR Wall Profile

Full specification onNBS Source

Aluminium datasheets: Cladding

Steel datasheets: Cladding

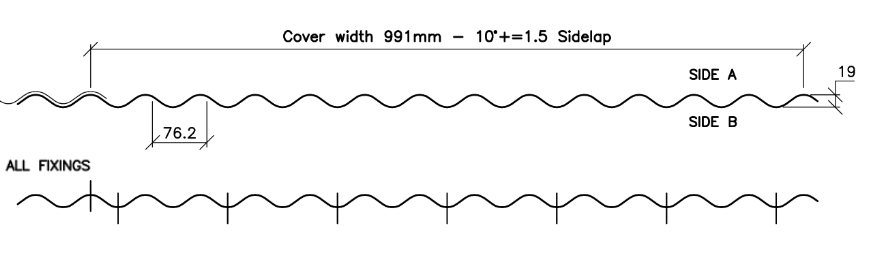

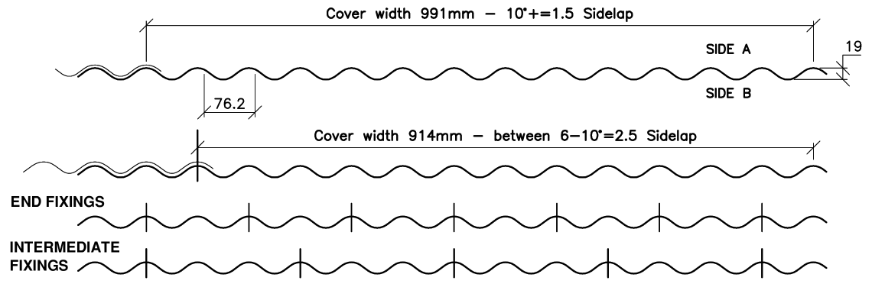

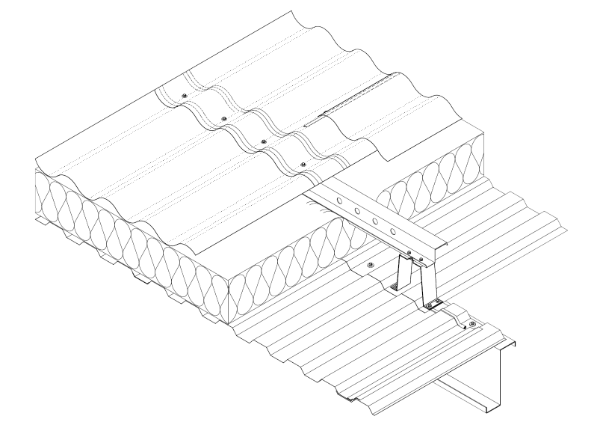

AP18HR-R Roof Profile

Full specification onNBS Source

Aluminium datasheets: Roofing

Steel datasheets: Roofing

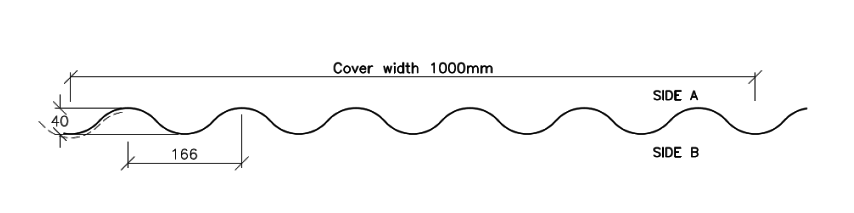

AP45HR Wall Profile

Full specification onNBS Source

Aluminium datasheets: Cladding

Steel datasheets: Cladding

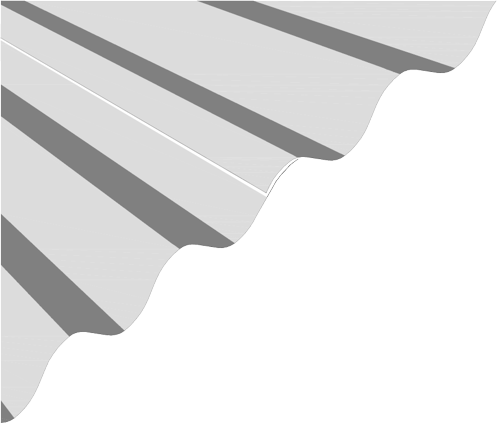

AP45HR-R Roof Profile

Full specification onNBS Source

Aluminium datasheets: Roofing

Steel datasheets: Roofing

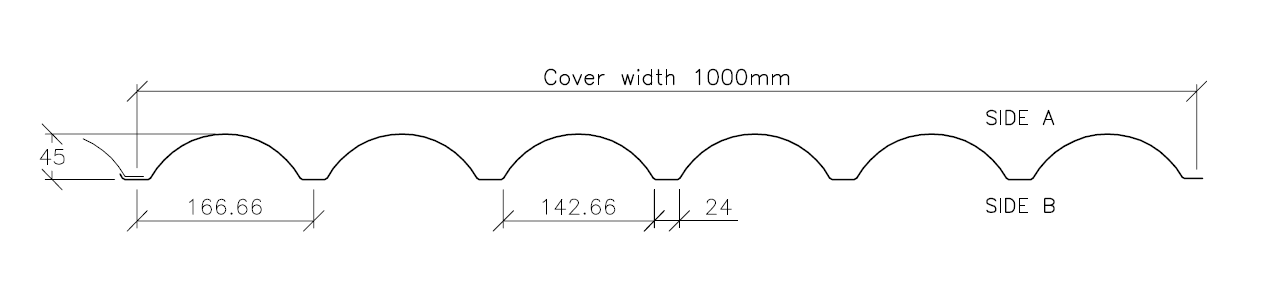

AP50HR Wall Profile

Full specification onNBS Source

Aluminium datasheets: Cladding

Steel datasheets: Cladding
