AP50 Curveline

A unique architectural stand-out concave profile, which can be used to create a striking and stylish building fašade

  • APL About us
  • APL About us
  • APL About us

AP50 Curveline is part of the APL profile range and can be used as as both a ventilated rainscreen-type cavity and a fully-filled cavity.

Available in both Aluminium and Steel and a wide choice of finishes and colours, it also offers an economic alternative to terracotta.

Please see the APL profiles that have been successfully tested to CWCT-standards - Click to download our CWCT Test Profiles.

Key Benefits

  • All systems as a non-combustible construction
  • Suitable for wall applications in lengths up to 8m
  • Available in aluminium and steel with coating warranties up to 40 years
  • Available as a fire-resistance rated insulated system assembly when combined with APL Tritherm™ Spacer System, with simple system upgrades for improved fire resistance performance
  • A1 fire-rated finishes available, including Armacoil™HDP and anodised
  • Other finishes include PPC, PUF, PRISMA and LG finishes
  • Available as Airwall™ - part or fully perforated
  • Bespoke cover widths available (dependant on project quantity)
  • Can be laid both horizontally and vertically
  • System constructions available on to APL StrongBak™, cladding rails, SFS and blockwork
  • Extremely attractive and unique cladding at economical prices
  • Can be installed as part of an APL EcoClad™ Energi System
  • Available as an acoustic construction with enhanced acoustic performance.

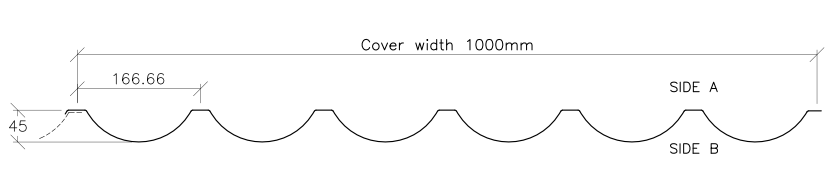

Wall Profile AP50 Curveline

Full specification onNBS Source

Aluminium datasheet: Cladding

Steel datasheet: Cladding

APL Cladsafe and Cladshield logos
