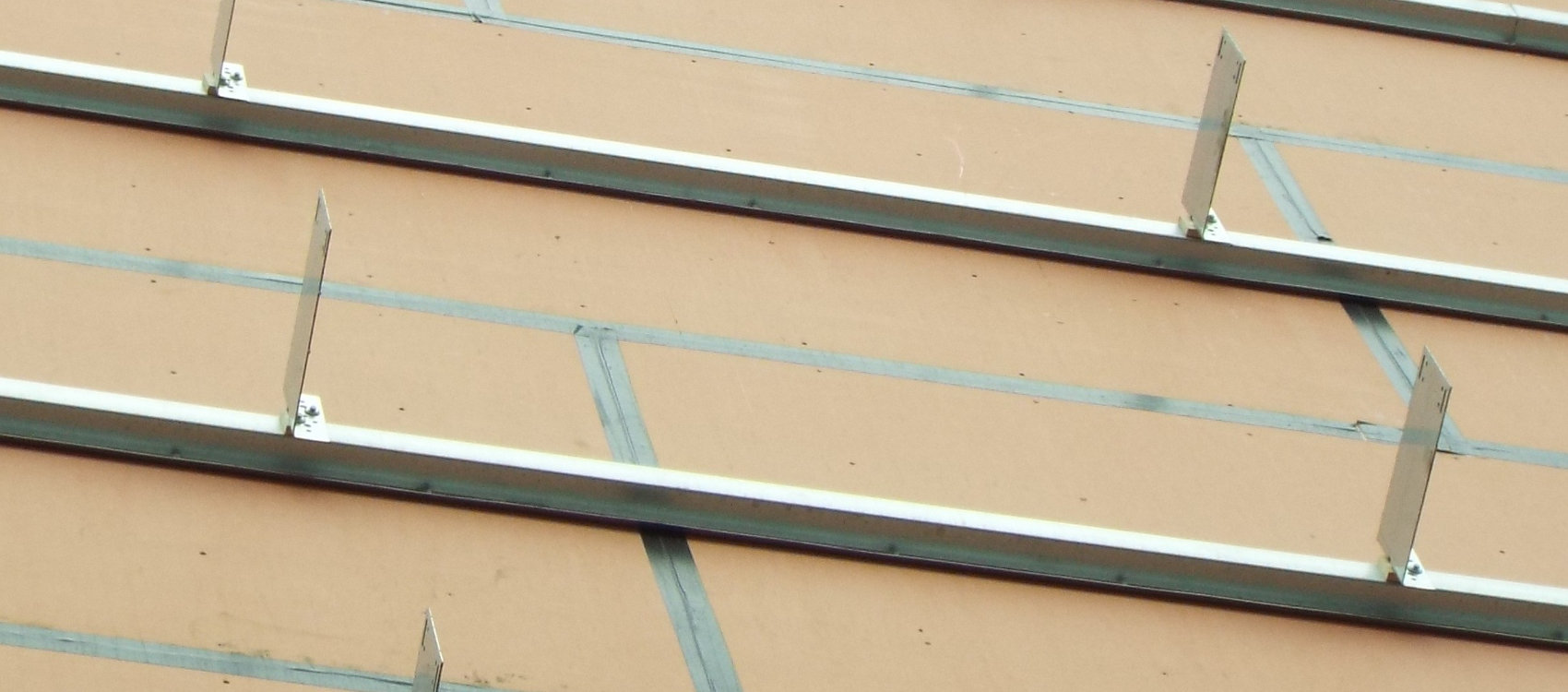

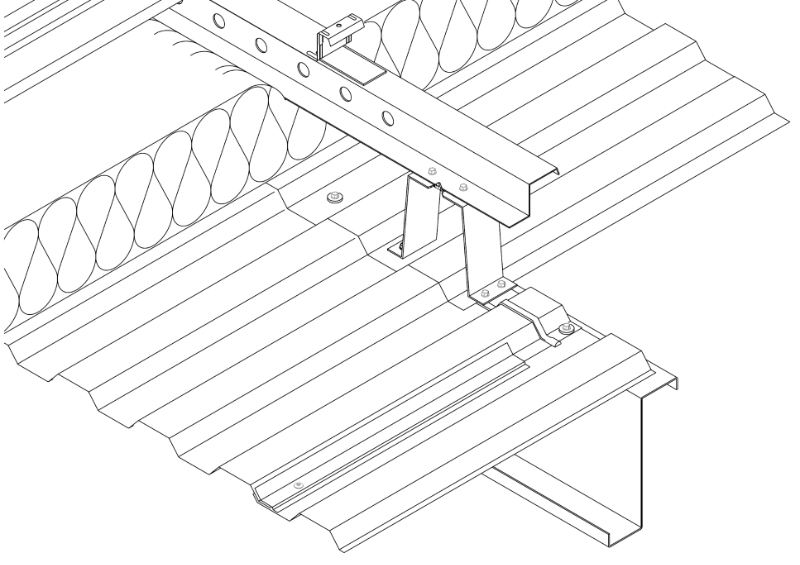

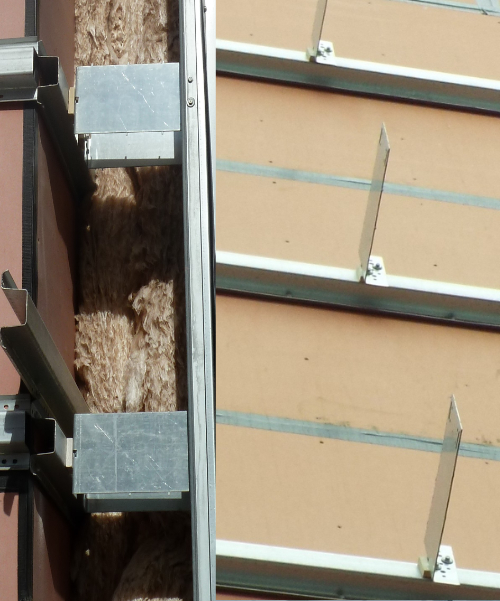

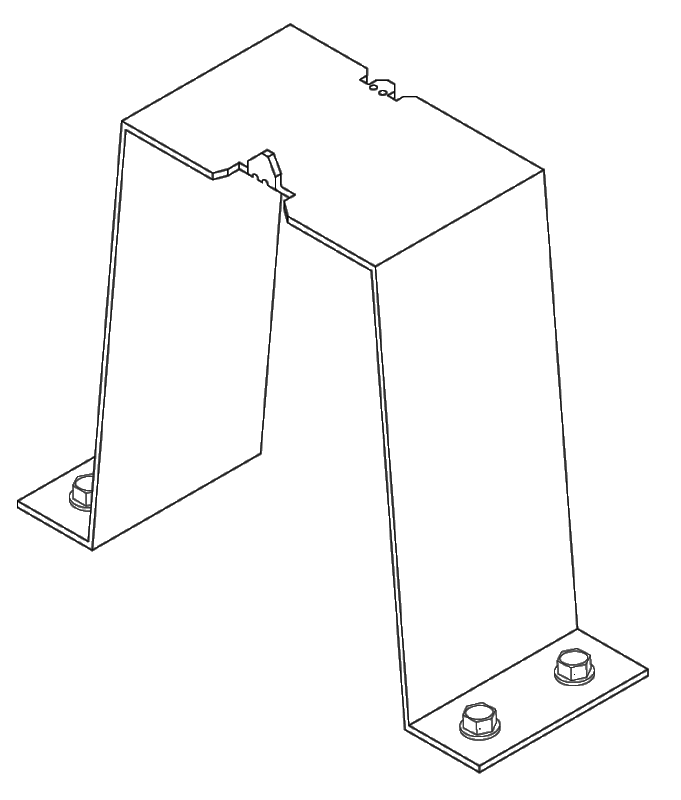

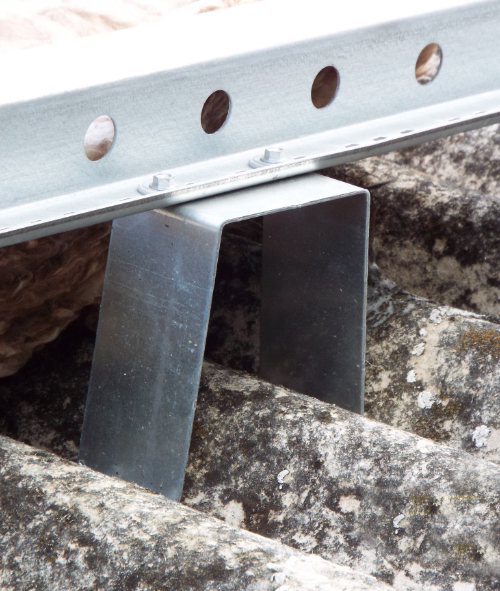

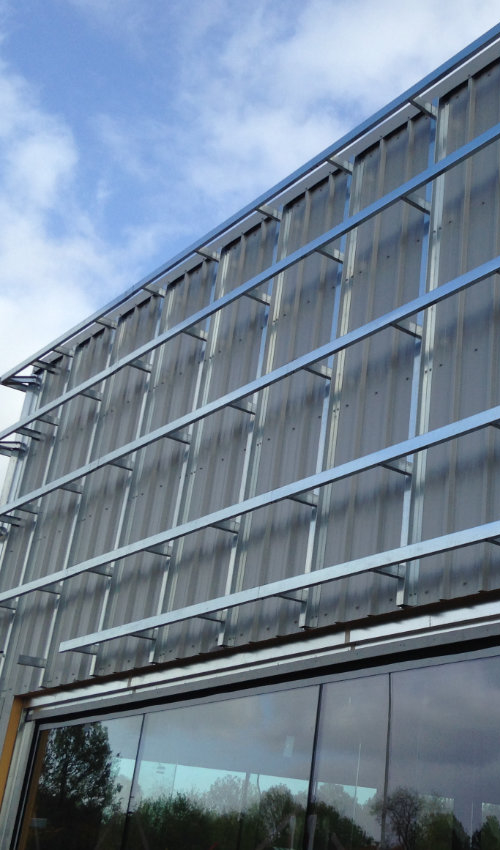

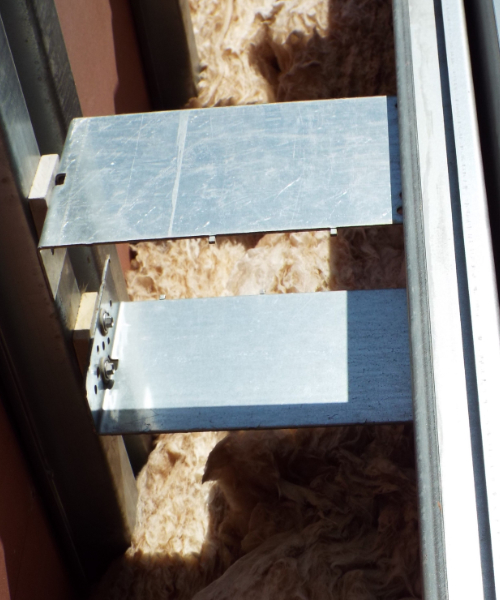

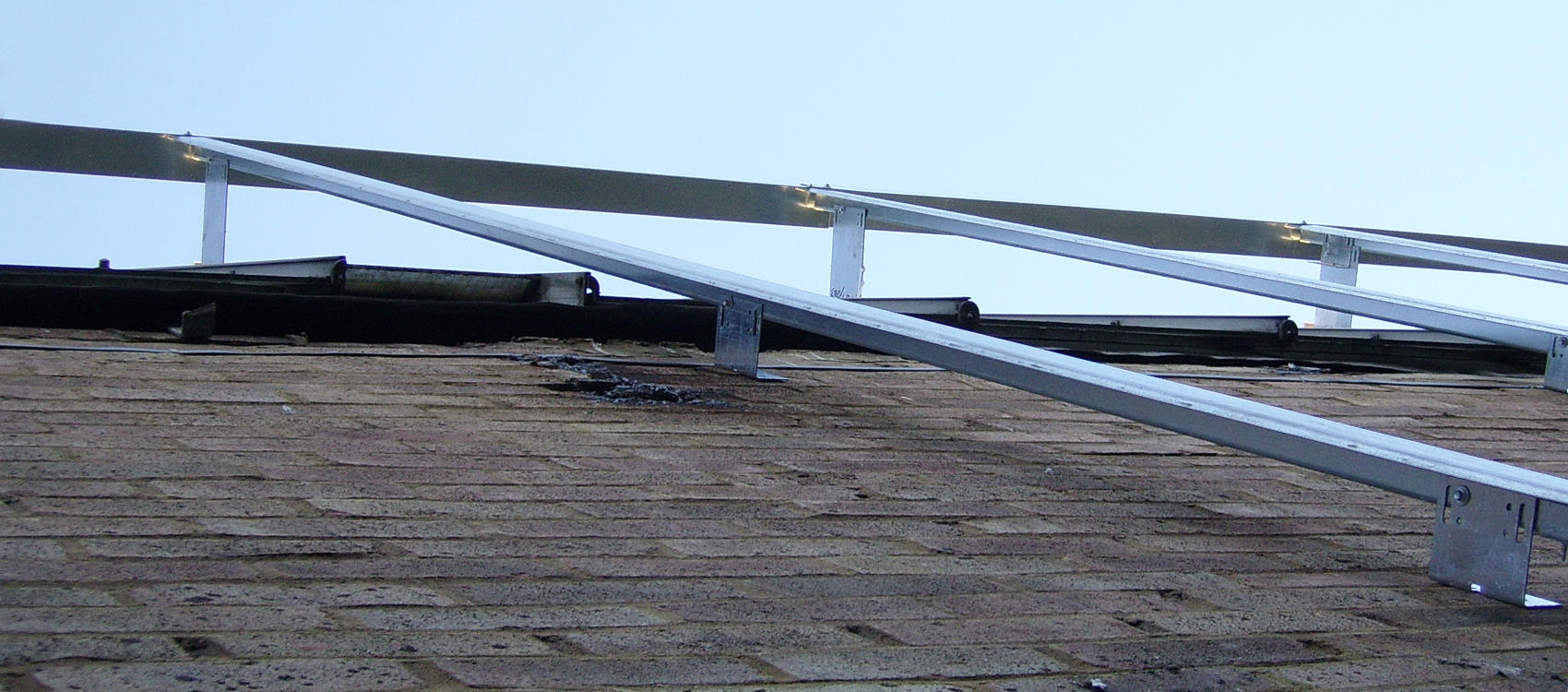

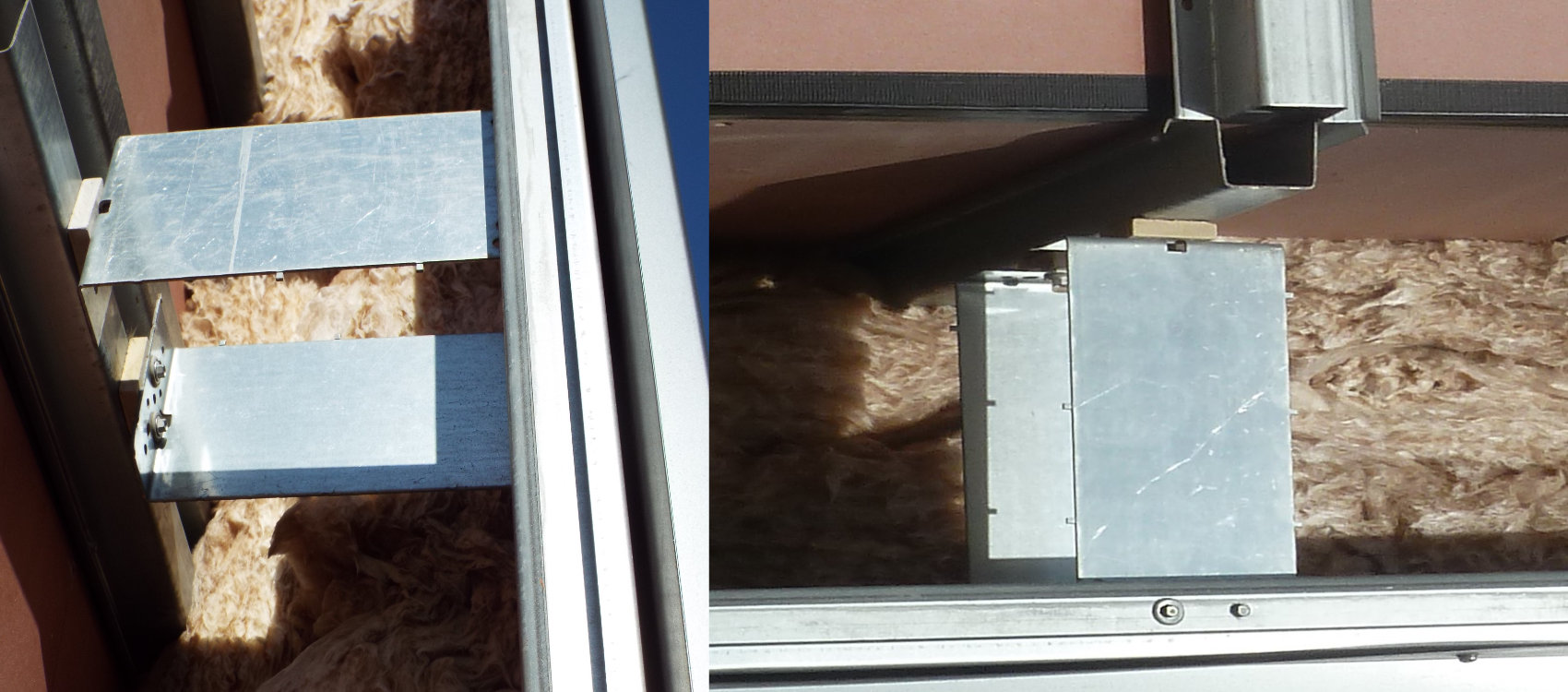

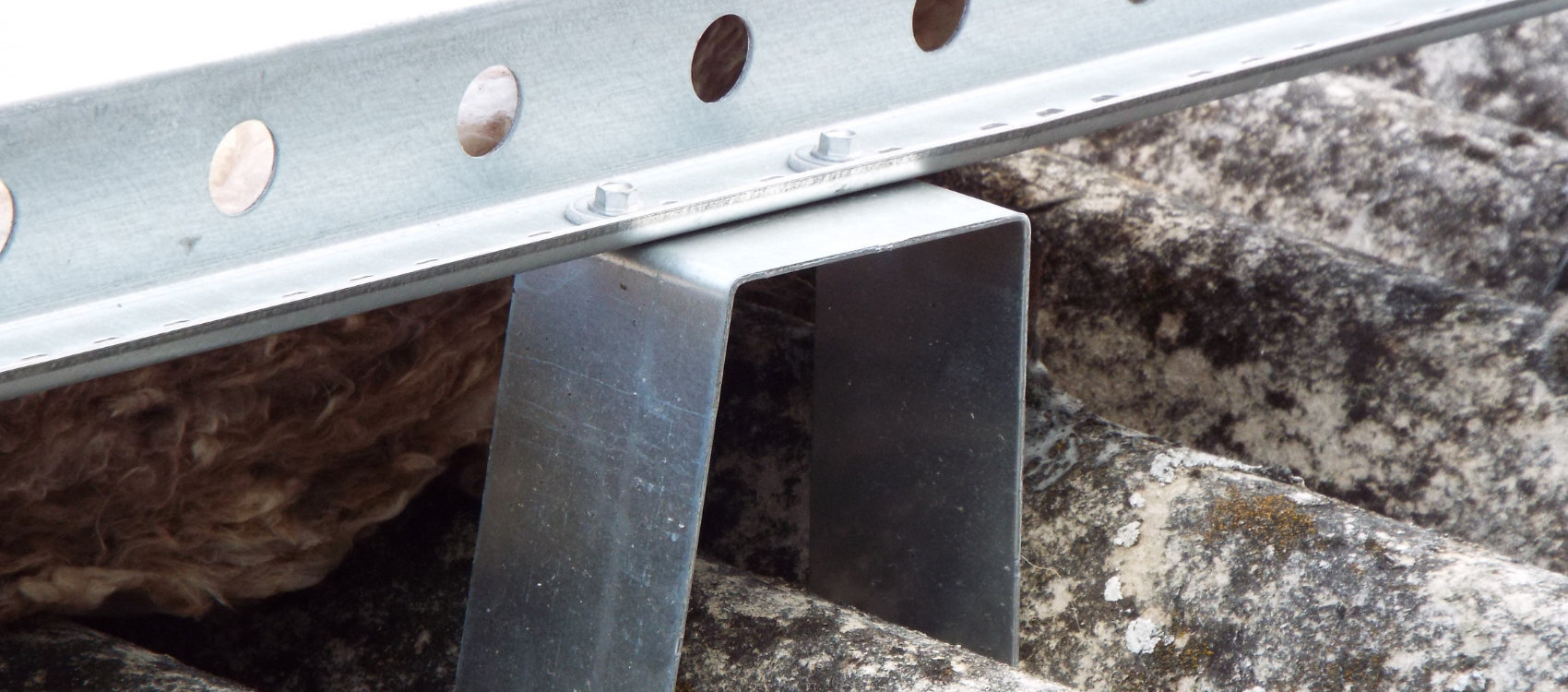

The exclusive APL Tritherm Spacer System^℗ is the most technically advanced spacer system available in the UK. As well as being adjustable and providing unequalled thermal properties it is also immensely strong - a combination that maintains structural integrity even with insulation thickness in excess of 300mm.

The outstanding structural capacity of the system helps to minimise thermal bridging, permit easy air sealing and at the same time save money compared to 'traditional' detailing.

Key Benefits

• Helping Hand Handi Bracket allows for +22mm adjustment – making alignment simple and allows for deviations in the backing structure, such as with blockwork
• The most thermally efficient system available in the UK.
• U values as low as 0.09W/m2.k possible with standard components.
• Stronger and more stable than any other option.
• Allows easy detailing of Energy Efficient Slim Cantilever perimeter overhangs.
• The 'backbone' on the APL EcoClad™ Energi Systems.

AluE Tritherm™ Support Framing

For use with our Slimwall™ FF system, or where the project requires a ventilated cavity, the engineered AluE Tritherm™ aluminium support framing system will meet your performance requirements.

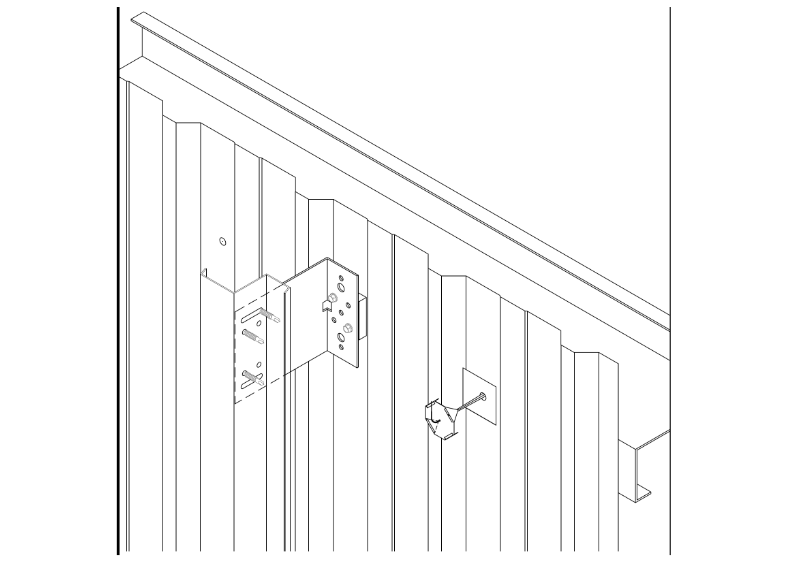

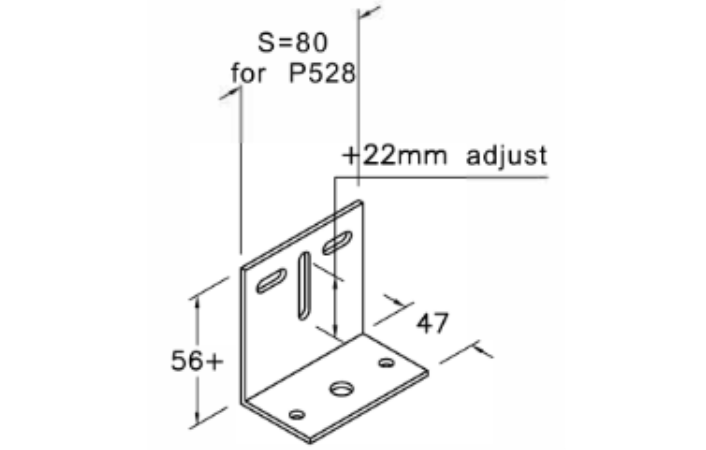

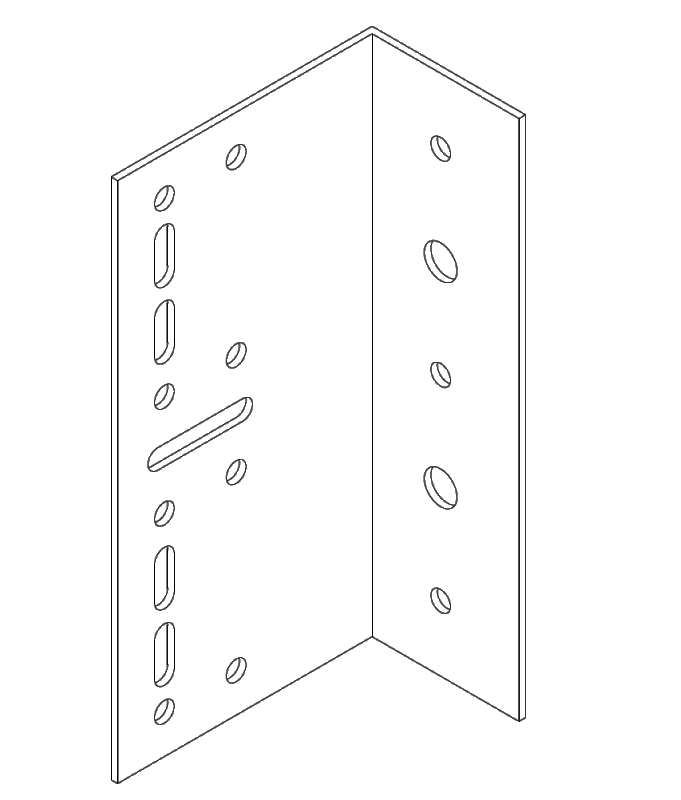

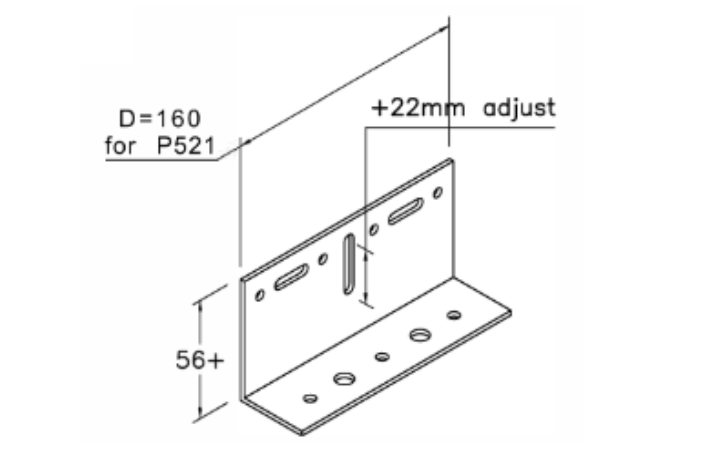

• Load-bearing helping-hand brackets to give +22mm adjustment – 3mm to 5mm structural-grade aluminium
  a. Available in sizes from 56mm to 415mm
• Non load-bearing helping-hand brackets to give +22mm adjustment - 3mm to 5mm structural-grade aluminium
  a. Available in sizes from 56mm to 415mm

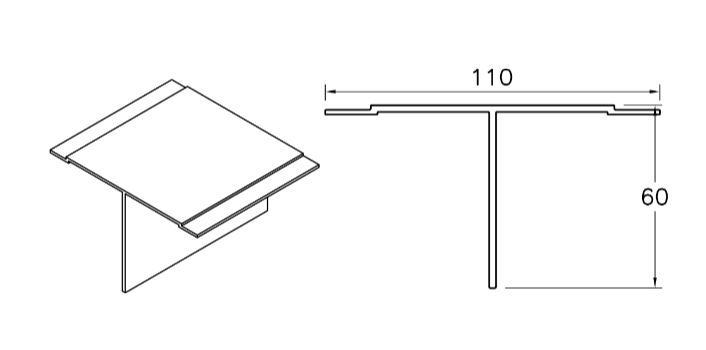

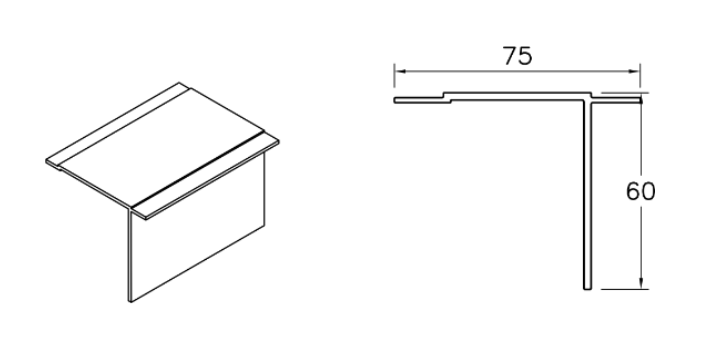

• T rails – extruded aluminium 6063 T6
• L-rails – extruded aluminium 6063 T6

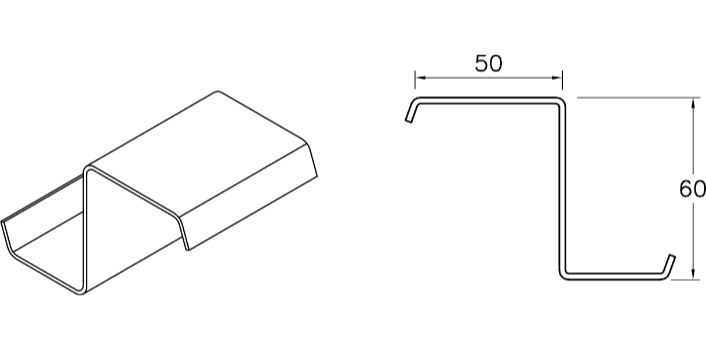

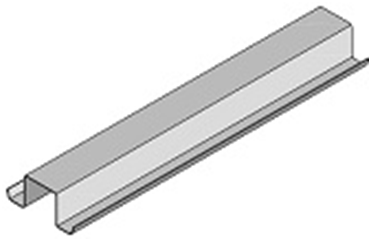

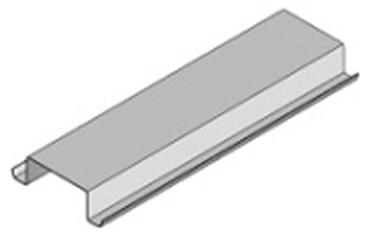

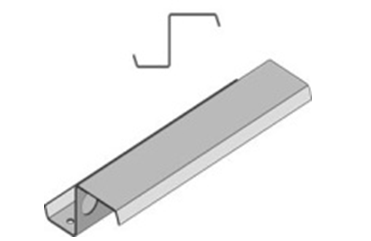

• Z-rails – extruded aluminium 6063 T6

All components come mill-finish as standard but are also available in our range of PPC finishes or anodised to meet your project requirements.

Download more information

Click to download our Quick Reference – Tritherm ™ GALV Spacer System

Click to download our Quick Reference – AluE™ Tritherm™ Aluminium Spacer System

Click to download our APL Spacer System – Tritherm™ datasheet

Download the AluE Tritherm™ Support Framing datasheet

Please contact us for more information
